GT-WTS-1 张力传感器

张力测量仪厂家 2018-03-13


  10kg...200kg
  Maximum capacity (Emax)额定载荷(kg): 10,25,50,75,1

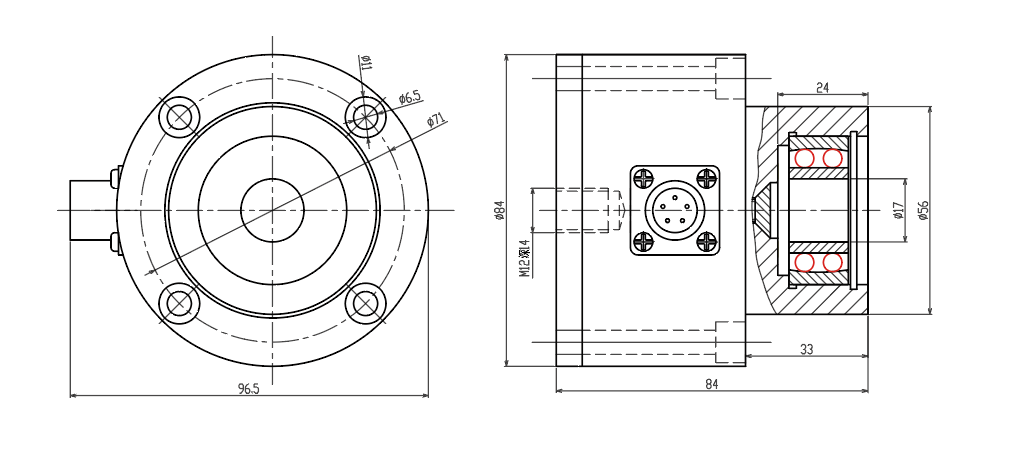

  Dimensions外形尺寸(in mm)






  Specifications技术参数

Rated Load 额定载荷 kg  10,25,50,75,100,150,200
Rated Output 额定输出 MV/V 1±0.1%
Zero balance 零点平衡 %R.O ±1
Comprehensive Error 综合误差 %R.O ±0.5
Nolinear 非线性 %R.O <0.1
Lag 滞后 %R.O <0.1
repeatability 重复性 %R.O <0.05
Temp. compensated 正常工作温度范围 -10-+40
Safe temp. range 允许工作温度范围 -20-+70
Temp.effect/10℃ on output 温度对灵敏度影响 %R.O./10℃ ±0.03
Temp.effect/10℃ on zero 温度对零点影响 %R.O./10℃ ±0.03
Rated excitation 激励电压 VDC 5-12
Maximum excitation 最大激励 VDC 15
Input impedance 输入阻抗 Ω 380±10
Output impedance 输出阻抗 Ω 350±3
Insulation resistance 绝缘阻抗 >5000
Safe overload 安全载荷 %R.C. 150
Ultimate overload 极限载荷 %R.C. 300
Material 材料   alloy steel
Degree of protection 保护等级   IP65

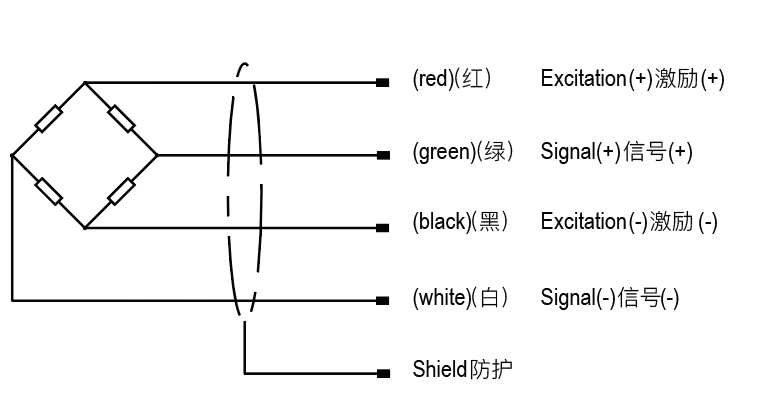

Cable color code 接线   Red(+E) Black(-E)
Green(+S) White(-S)
