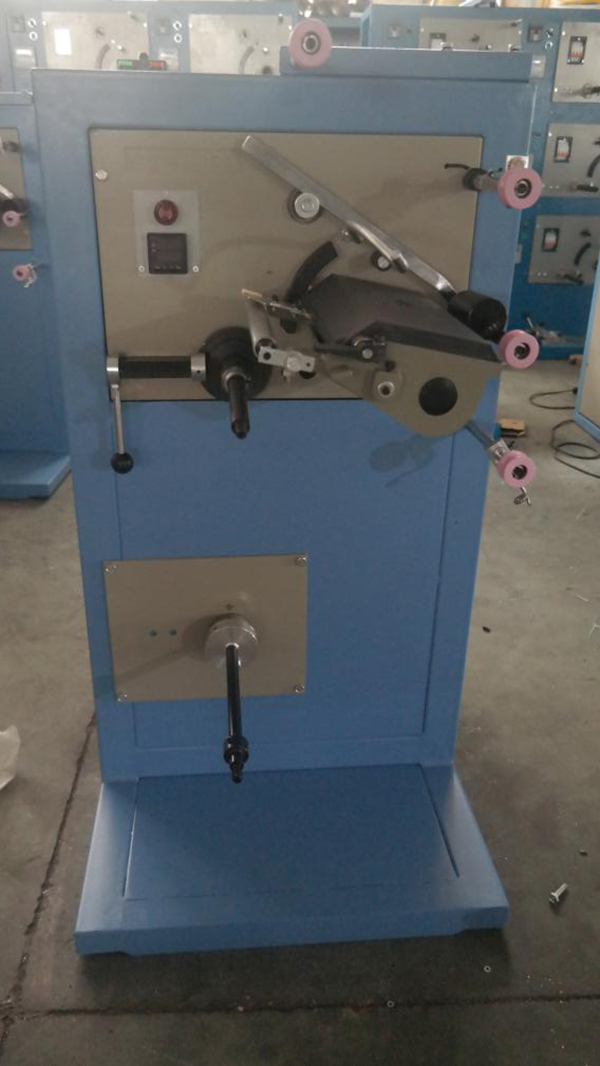

绳索变频倒筒机

张力测量仪厂家 2018-01-24




  特点及应用| Characteristics and Application
  适用于塑料(尼龙)单丝、塑料绳、塑料扁丝等材料的卷绕。具有速度平稳,卷绕成型好等特点。
  技术参数:
  卷绕机绕丝线速度:250m/min
  电源:AC380V  50HZ
  电机功率:500W
  连接电缆3×2.5   R.S.J.MP
  卷绕筒管尺寸: Φ94(内径)×Φ104(外径)×290(长度)
  卷绕成型尺寸:Φ0-250MM-250MM
  往复行程:250mm
  单锭面板尺寸:宽×高(mm)490×330
  Suitable for winding of plastic (nylon) monofilament, plastic rope, plastic flat wire etc.It has the characteristics of smooth speed and winding forming.
  Technical parameters:
  Winding speed:250m/min
  Power:AC380V  50HZ
  Motor power:500W
  Connect the cable:3X2.5  R.S.J.MP
  Winding bobbin size:Inside diameter x Outside diameter x length(mm)94X104X290(The inner diameter and length have different requirements can be customized in the range)
  Winding the size:Φ0-250MM-250MM
  Reciprocating stroke:250mm
  Single spindle panel size:Wide x high(mm)490X330
