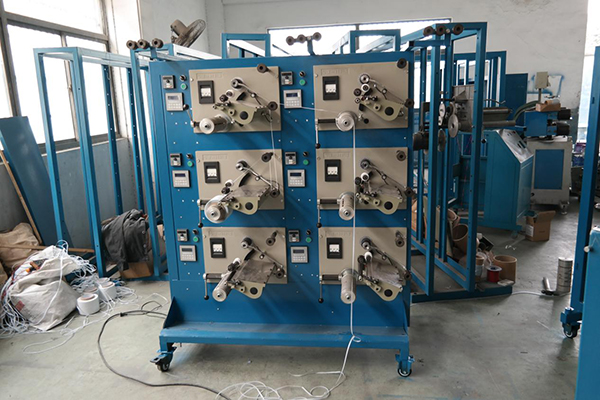

数控卷绕机 BT-SFBPBDSJ-230

张力测量仪厂家 2018-01-24


  特点及应用| Characteristics and Application
  卷绕机主要用作纤维,纸绳,圆丝及塑料编织袋拉丝机组卷绕机,也可在轻工、纺织、电子等生产领域使用。本机器具有高速,丝筒成形好。张力恒定,能耗低等特点,适用于各种绳类,扁丝,纤维,圆丝,带状物等。
  技术参数:
  卷绕机绕丝线速度:0-280m/min
  卷筒最大直径:25-200mm
  电源:AC380V/220V  50HZ/60HZ
  电机功率:伺服电机:400W
  电动机:180W
  电机转速:伺服电机:3000 r/min
  电动机:1400r/min
  连接电缆4×1.5   R.S.J.MP
  卷绕筒管尺寸:内径×外径×长度(mm)38×41×230(无论内径和长度均可以在有限范围内为您定做)
  往复行程:203/254(标准)
  单锭面板尺寸:宽×高(mm)475×330
  Winding machine is mainly used as fiber, paper rope, round wire and plastic woven bag drawing machine, also can be used in light industry, textile, electronics and other production areas.This machine has high speed, silk tube forming well.Constant tension and low energy consumption are applicable to all kinds of rope, flat silk, fiber, round wire, etc
  Technical parameters:
  Winding speed:0-280m/min
  The maximum diameter of the drum:25-200mm
  Power:AC380V/220V  50HZ/60HZ
  Motor power:Servo motor:400w
  Motor:180w
  Motor speed:Servo motor:3000 r/min
  Motor:1400r/min
  Connect the cable:4X1.5   R.S.J.MP
  Winding bobbin size:Inside diameter x Outside diameter x length(mm)38x41x230(The inner diameter and length have different requirements can be customized in the range)
  Reciprocating stroke:203/254
  Single spindle size:475mm×330mm
